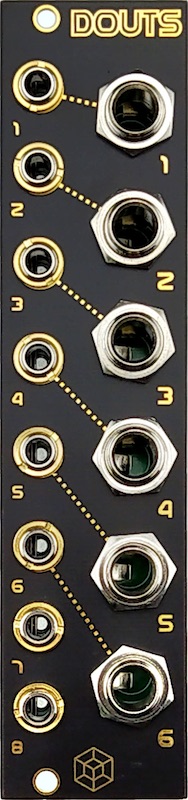

Douts 3HP

Direct Outs for TexMix & 3,5mm to 6,3mm converter

This is a 3HP version of the Douts module,

a breakout box for the direct outs of the TexMix. Valid for ‘4StereoChannels’ and ‘4MonoChannels’ version 1.5 & 1.6, for earlier channel expander versions some DIY would be required.

Each module has 8 outputs so it could have 2x ‘4MonoChannels’ connected or 1x ‘4StereoChannels’.

The orientation of the 8 pin ribbon cable is marked by the ‘DIRECT OUTS’ legend on the PCB of the channel expanders (mono or stereo) and a white line in the DOUTS input header.

DOUTS has 3 headers on the back, 2 of them are for 4 Mono Channels, the other one, labeled STEREO, is for 4 Stereo Channels.

3 HP

+12V 0 mA

-12V 0 mA

B.O.M:

Signal & pin correspondence for mono.

If your version of the 4 Mono Channels it’s earlier than v1.5 cut one of the connector of the 8 pin ribbon cable, solder the cables to pick the post-fader signal as shown in this image. For the ground there are several places on the PCB, for example the center pins of the PAN pots. Left image shows the pinout of the ribbon.

Signal & pin correspondence for stereo.

signal & wire correspondence for mono.
